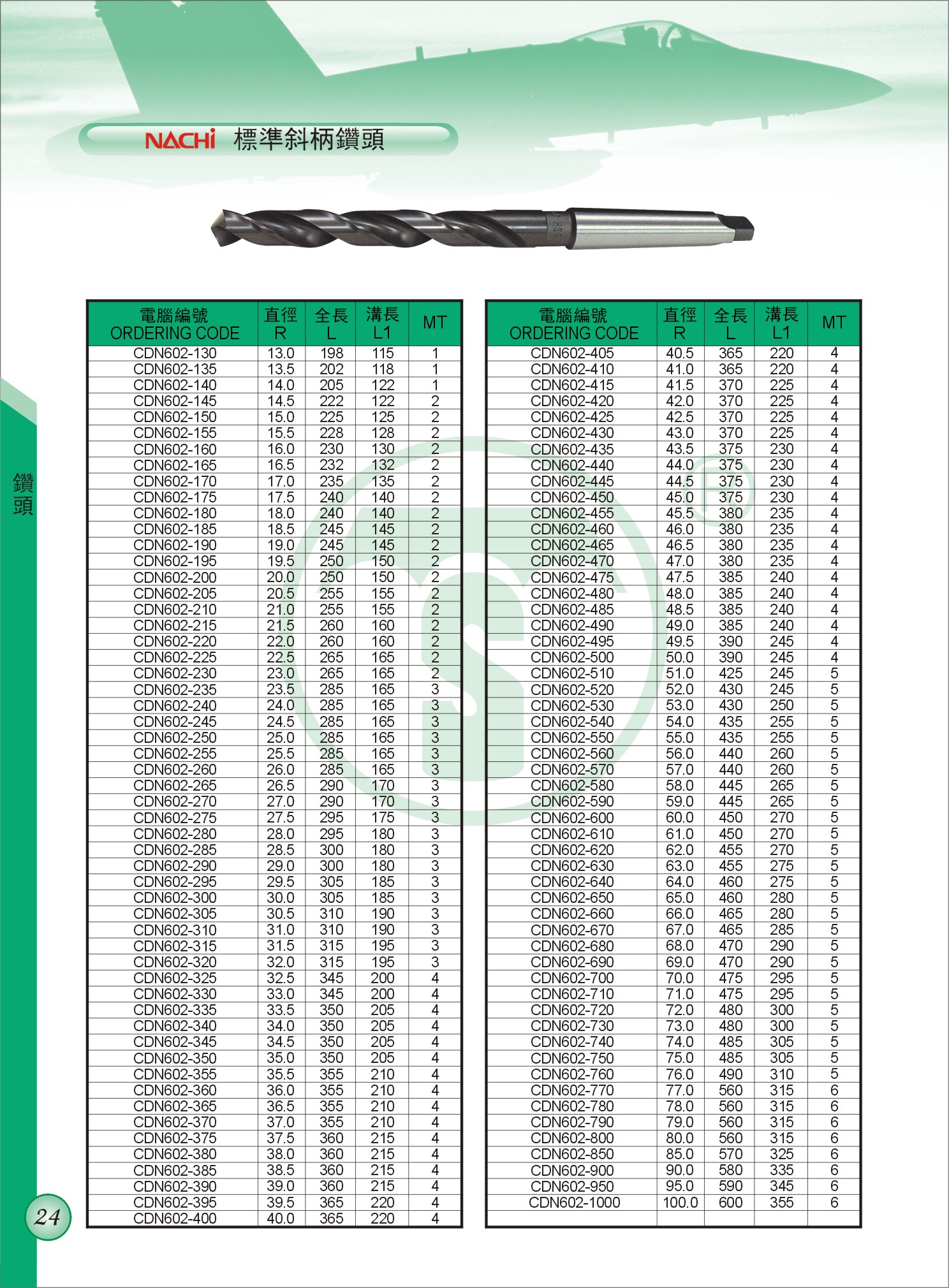

NACHI Standard Twist Drill With Taper Shank
| 電腦編號 ORDERING CODE |
直徑 R |
全長 L |
溝長 L1 |
MT |
| CDN602-130 | 13.0 | 198 | 115 | 1 |
| CDN602-135 | 13.5 | 202 | 118 | 1 |
| CDN602-140 | 14.0 | 205 | 122 | 1 |
| CDN602-145 | 14.5 | 222 | 122 | 2 |
| CDN602-150 | 15.0 | 225 | 125 | 2 |
| CDN602-155 | 15.5 | 228 | 128 | 2 |
| CDN602-160 | 16.0 | 230 | 130 | 2 |
| CDN602-165 | 16.5 | 232 | 132 | 2 |
| CDN602-170 | 17.0 | 235 | 135 | 2 |
| CDN602-175 | 17.5 | 240 | 140 | 2 |
| CDN602-180 | 18.0 | 240 | 140 | 2 |
| CDN602-185 | 18.5 | 245 | 145 | 2 |
| CDN602-190 | 19.0 | 245 | 145 | 2 |
| CDN602-195 | 19.5 | 250 | 150 | 2 |
| CDN602-200 | 20.0 | 250 | 150 | 2 |
| CDN602-205 | 20.5 | 255 | 155 | 2 |
| CDN602-210 | 21.0 | 255 | 155 | 2 |
| CDN602-215 | 21.5 | 260 | 160 | 2 |
| CDN602-220 | 22.0 | 260 | 160 | 2 |
| CDN602-225 | 22.5 | 265 | 165 | 2 |
| CDN602-230 | 23.0 | 265 | 165 | 2 |
| CDN602-235 | 23.5 | 285 | 165 | 3 |
| CDN602-240 | 24.0 | 285 | 165 | 3 |
| CDN602-245 | 24.5 | 285 | 165 | 3 |
| CDN602-250 | 25.0 | 285 | 165 | 3 |
| CDN602-255 | 25.5 | 285 | 165 | 3 |
| CDN602-260 | 26.0 | 285 | 165 | 3 |
| CDN602-265 | 26.5 | 290 | 170 | 3 |
| CDN602-270 | 27.0 | 290 | 170 | 3 |
| CDN602-275 | 27.5 | 295 | 175 | 3 |
| CDN602-280 | 28.0 | 295 | 180 | 3 |
| CDN602-285 | 28.5 | 300 | 180 | 3 |
| CDN602-290 | 29.0 | 300 | 180 | 3 |
| CDN602-295 | 29.5 | 305 | 185 | 3 |
| CDN602-300 | 30.0 | 305 | 185 | 3 |
| CDN602-305 | 30.5 | 310 | 190 | 4 |
| CDN602-310 | 31.0 | 310 | 190 | 4 |
| CDN602-315 | 31.5 | 315 | 195 | 4 |
| CDN602-320 | 32.0 | 315 | 195 | 4 |
| CDN602-325 | 32.5 | 345 | 200 | 4 |
| CDN602-330 | 33.0 | 345 | 200 | 4 |
| CDN602-335 | 33.5 | 350 | 205 | 4 |
| CDN602-340 | 34.0 | 350 | 205 | 4 |
| CDN602-345 | 34.5 | 350 | 205 | 4 |
| CDN602-350 | 35.0 | 350 | 205 | 4 |
| CDN602-355 | 35.5 | 355 | 210 | 4 |
| CDN602-360 | 36.0 | 355 | 210 | 4 |
| CDN602-365 | 36.5 | 355 | 210 | 4 |
| CDN602-370 | 37.0 | 355 | 210 | 4 |
| CDN602-375 | 37.5 | 360 | 215 | 4 |
| CDN602-380 | 38.0 | 360 | 215 | 4 |
| CDN602-385 | 38.5 | 360 | 215 | 4 |
| CDN602-390 | 39.0 | 360 | 215 | 4 |
| CDN602-395 | 39.5 | 365 | 220 | 4 |
| CDN602-400 | 40.0 | 365 | 220 | 4 |
| CDN602-405 | 40.5 | 365 | 220 | 4 |
| CDN602-410 | 41.0 | 365 | 220 | 4 |
| CDN602-415 | 41.5 | 370 | 225 | 4 |
| CDN602-420 | 42.0 | 370 | 225 | 4 |
| CDN602-425 | 42.5 | 370 | 225 | 4 |
| CDN602-430 | 43.0 | 370 | 225 | 4 |
| CDN602-435 | 43.5 | 375 | 230 | 4 |
| CDN602-440 | 44.0 | 375 | 230 | 4 |
| CDN602-445 | 44.5 | 375 | 230 | 4 |
| CDN602-450 | 45.0 | 375 | 230 | 4 |
| CDN602-455 | 45.5 | 380 | 235 | 4 |
| CDN602-460 | 46.0 | 380 | 235 | 4 |
| CDN602-465 | 46.5 | 380 | 235 | 4 |
| CDN602-470 | 47.0 | 380 | 235 | 4 |
| CDN602-475 | 47.5 | 385 | 240 | 4 |
| CDN602-480 | 48.0 | 385 | 240 | 4 |
| CDN602-485 | 48.5 | 385 | 240 | 4 |
| CDN602-490 | 49.0 | 385 | 245 | 4 |
| CDN602-495 | 49.5 | 390 | 245 | 4 |
| CDN602-500 | 50.0 | 390 | 245 | 4 |
| CDN602-505 | 50.5 | 425 | 245 | 4 |
| CDN602-510 | 51.0 | 430 | 245 | 4 |
| CDN602-520 | 52.0 | 435 | 245 | 4 |
| CDN602-530 | 53.0 | 435 | 250 | 5 |
| CDN602-540 | 54.0 | 440 | 255 | 5 |
| CDN602-550 | 55.0 | 440 | 260 | 5 |
| CDN602-560 | 56.0 | 440 | 260 | 5 |
| CDN602-570 | 57.0 | 440 | 265 | 5 |
| CDN602-580 | 58.0 | 445 | 265 | 5 |
| CDN602-590 | 59.0 | 445 | 270 | 5 |
| CDN602-600 | 60.0 | 450 | 270 | 5 |
| CDN602-610 | 61.0 | 450 | 270 | 5 |
| CDN602-620 | 62.0 | 455 | 270 | 5 |
| CDN602-630 | 63.0 | 455 | 275 | 5 |
| CDN602-640 | 64.0 | 460 | 275 | 5 |
| CDN602-650 | 65.0 | 460 | 280 | 5 |
| CDN602-660 | 66.0 | 465 | 280 | 5 |
| CDN602-670 | 67.0 | 465 | 285 | 5 |
| CDN602-680 | 68.0 | 470 | 290 | 5 |
| CDN602-690 | 69.0 | 470 | 290 | 5 |
| CDN602-700 | 70.0 | 475 | 295 | 5 |
| CDN602-710 | 71.0 | 475 | 295 | 5 |
| CDN602-720 | 72.0 | 480 | 300 | 5 |
| CDN602-730 | 73.0 | 480 | 300 | 5 |
| CDN602-740 | 74.0 | 485 | 305 | 5 |
| CDN602-750 | 75.0 | 485 | 305 | 5 |
| CDN602-760 | 76.0 | 490 | 310 | 5 |
| CDN602-770 | 77.0 | 560 | 315 | 6 |
| CDN602-780 | 78.0 | 560 | 315 | 6 |
| CDN602-790 | 79.0 | 560 | 315 | 6 |
| CDN602-800 | 80.0 | 560 | 315 | 6 |
| CDN602-850 | 85.0 | 570 | 325 | 6 |
| CDN602-900 | 90.0 | 580 | 335 | 6 |
| CDN602-950 | 95.0 | 590 | 345 | 6 |
| CDN602-1000 | 100.0 | 600 | 355 | 6 |
