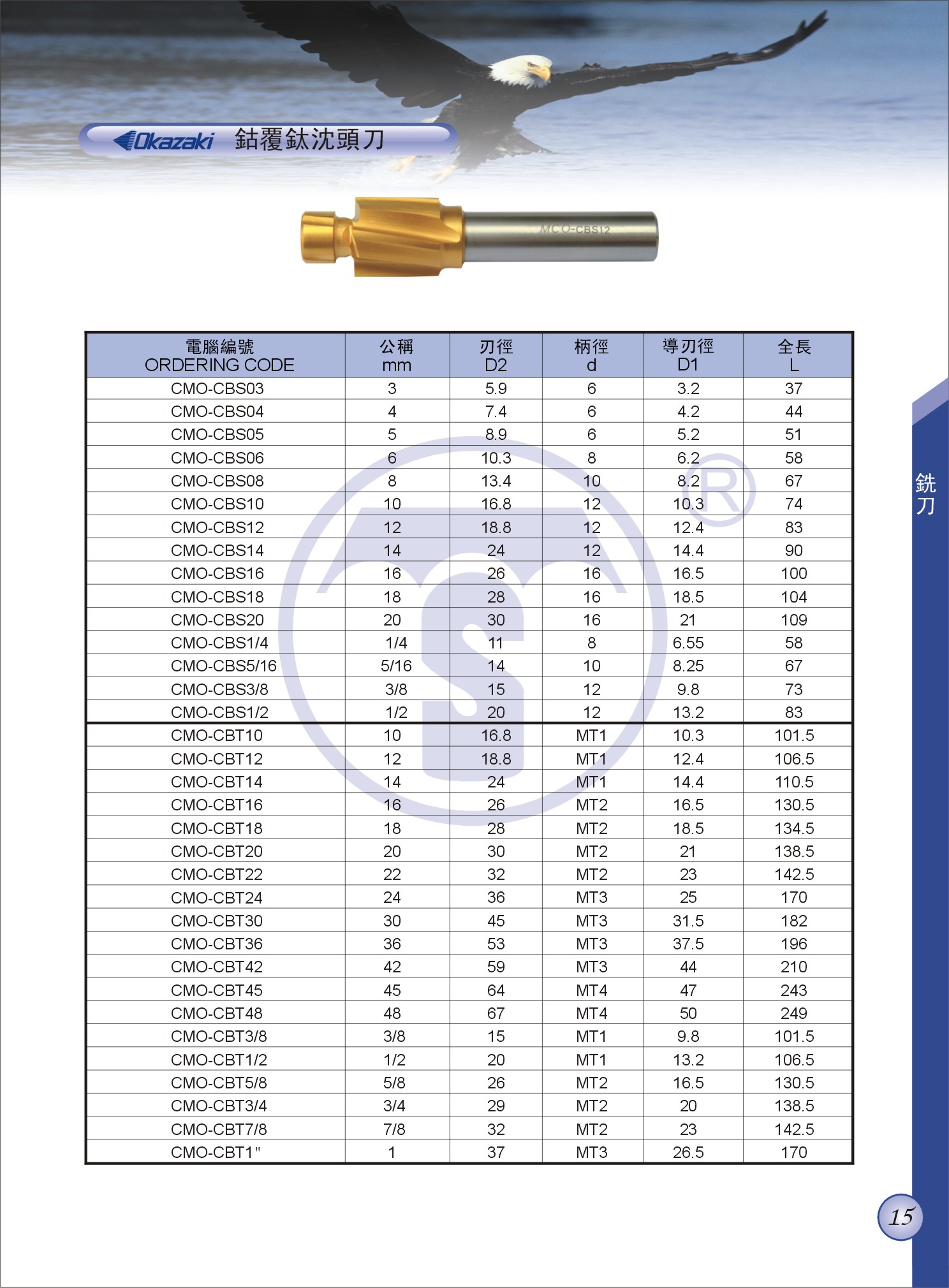

OKAZAKI TiN Coated Counterbores With Straight Shank
| 電腦編號 ORDERING CODE |
尺寸SIZE | 柄徑 d |
導刃徑 D1 |
導刃長 l1 |
刃長 l2 |
柄長 l3 |
全長 L |
|
| 公稱 | 刃徑D2 | |||||||
| CMO-CBS03 | 3 | 5.9 | 6 | 3.2 | 3 | 7 | 27 | 37 |
| CMO-CBS04 | 4 | 7.4 | 6 | 4.2 | 4 | 10 | 30 | 44 |
| CMO-CBS05 | 5 | 8.9 | 6 | 5.2 | 5 | 13 | 28 | 51 |
| CMO-CBS06 | 6 | 10.5 | 8 | 6.2 | 6 | 15 | 32 | 48 |
| CMO-CBS08 | 8 | 13.4 | 10 | 8.2 | 8 | 16 | 38 | 67 |
| CMO-CBS10 | 10 | 16.8 | 12 | 10.3 | 10 | 16 | 43 | 74 |
| CMO-CBS12 | 12 | 18.8 | 12 | 13.4 | 12 | 20 | 46 | 83 |
| CMO-CBS14 | 14 | 24.0 | 12 | 14.4 | 14 | 20 | 51 | 90 |
| CMO-CBS16 | 16 | 26.0 | 16 | 16.5 | 16 | 22 | 48 | 100 |
| CMO-CBS18 | 18 | 28.0 | 16 | 18.5 | 18 | 24 | 48 | 104 |
| CMO-CBS20 | 20 | 30.0 | 16 | 21.0 | 20 | 26.0 | 48 | 109.0 |
| CMO-CBT10 | 10 | 16.8 | MT1 | 10.3 | 10 | 16 | 16 | 101.5 |
| CMO-CBT12 | 12 | 18.8 | MT1 | 12.4 | 12 | 18 | 18 | 106.5 |
| CMO-CBT14 | 14 | 24.0 | MT1 | 14.4 | 14 | 20 | 20 | 110.5 |
| CMO-CBT16 | 16 | 26.0 | MT2 | 16.5 | 16 | 22 | 22 | 130.5 |
| CMO-CBT18 | 18 | 28.0 | MT2 | 18.5 | 18 | 24 | 24 | 134.5 |
| CMO-CBT20 | 20 | 30.0 | MT2 | 21.0 | 21 | 26 | 26 | 138.5 |
| CMO-CBT22 | 22 | 32.0 | MT2 | 23.0 | 23 | 28 | 28 | 124.5 |
| CMO-CBT24 | 24 | 36.0 | MT3 | 25.0 | 25 | 32 | 32 | 170 |
| CMO-CBT30 | 30 | 45.0 | MT3 | 31.5 | 31 | 38 | 38 | 182 |
| CMO-CBT36 | 36 | 53.0 | MT3 | 37.5 | 37 | 44 | 44 | 196 |
| CMO-CBT42 | 42 | 59.0 | MT3 | 44.0 | 44 | 52 | 52 | 210.0 |
| CMO-CBT45 | 45 | 64.0 | MT4 | 47.0 | 47 | 55 | 55 | 243 |
| CMO-CBT48 | 48 | 67.0 | MT4 | 50.0 | 50 | 58 | 58 | 249 |
