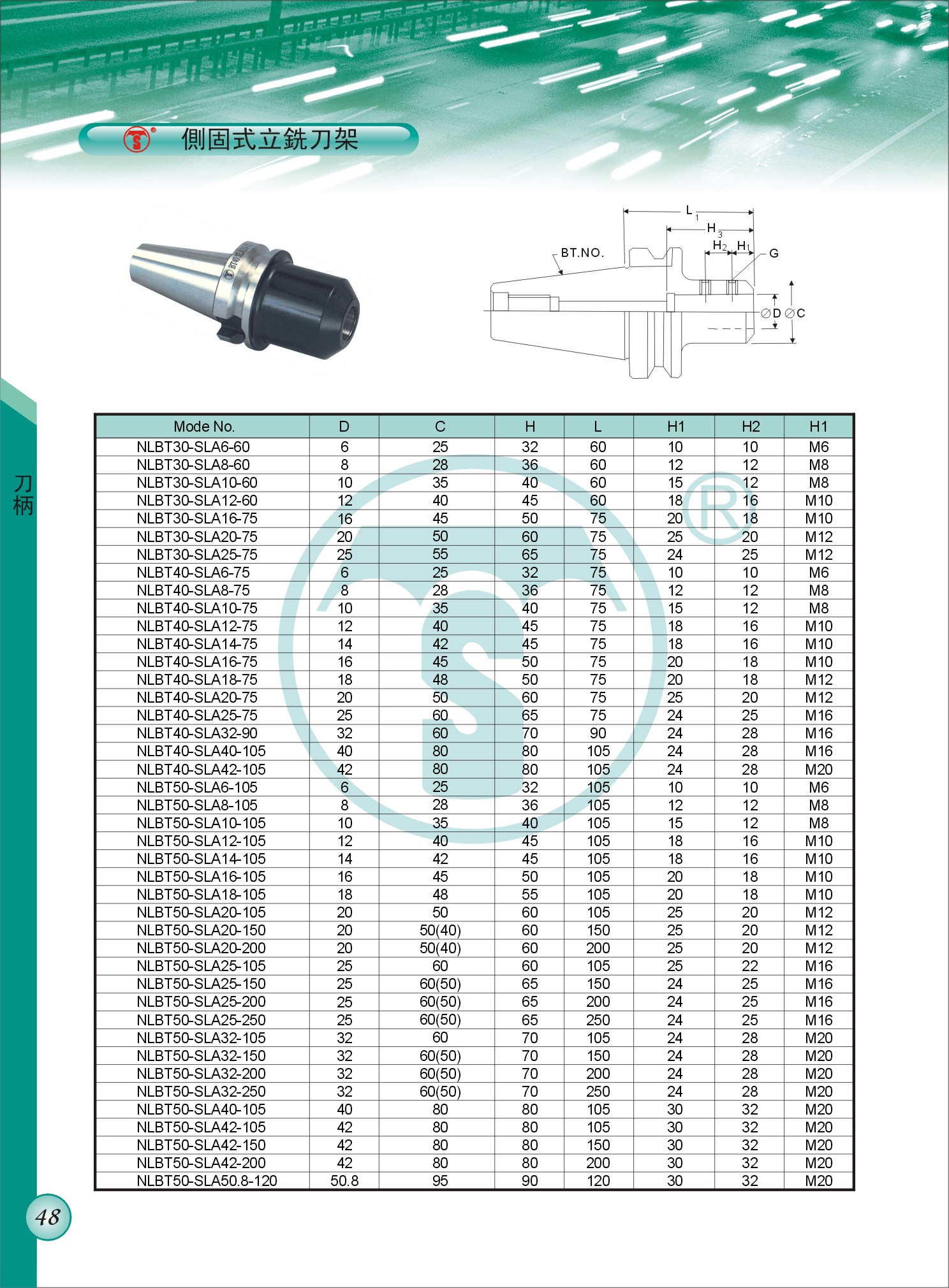

Sidelock Vertical END-Mill Arbor

Sidelock Vertical END-Mill Arbor

目錄　
Mode No. D C H L H1 H2 H1
NLBT30-SLA6-60 6 25 32 60 10 10 M6
NLBT30-SLA8-60 8 38 36 60 12 12 M8
NLBT30-SLA10-60 10 35 40 60 15 12 M8
NLBT30-SLA12-60 12 40 45 60 18 16 M10
NLBT30-SLA16-75 16 45 50 75 20 18 M10
NLBT30-SLA20-75 20 50 60 75 25 20 M12
NLBT40-SLA6-75 6 55 65 75 24 25 M12
NLBT40-SLA8-75 8 25 32 75 10 10 M6
NLBT40-SLA10-75 10 28 36 75 12 12 M8
NLBT40-SLA12-75 12 35 40 75 15 12 M8
NLBT40-SLA14-75 14 40 45 75 18 16 M10
NLBT40-SLA16-75 16 42 45 75 18 16 M10
NLBT40-SLA18-75 18 45 50 75 20 18 M10
NLBT40-SLA20-75 20 48 50 75 20 18 M12
NLBT40-SLA25-75 25 50 60 75 25 20 M12
NLBT40-SLA32-90 32 60 65 75 24 25 M16
NLBT40-SLA40-105 40 60 70 90 24 28 M16
NLBT40-SLA42-105 42 80 80 105 24 28 M16
NLBT50-SLA6-105 6 80 80 105 10 28 M20
NLBT50-SLA8-105 8 25 32 105 12 10 M6
NLBT50-SLA10-105 10 28 36 105 15 12 M8
NLBT50-SLA12-105 12 35 40 105 18 12 M8
NLBT50-SLA14-105 14 40 45 105 18 16 M10
NLBT50-SLA16-105 16 42 45 105 20 16 M10
NLBT50-SLA18-105 18 45 50 105 20 18 M10
NLBT50-SLA20-105 20 48 55 105 25 18 M10
NLBT50-SLA20-150 20 50 60 105 25 20 M12
NLBT50-SLA25-105 20 50(40) 60 150 25 20 M12
NLBT50-SLA25-150 25 50(40) 60 200 25 20 M12
NLBT50-SLA25-200 25 60 60 105 24 22 M16
NLBT50-SLA25-250 25 60(50) 65 150 24 25 M16
NLBT50-SLA32-105 32 60(50) 65 200 24 25 M16
NLBT50-SLA32-150 32 60(50) 65 250 24 25 M16
NLBT50-SLA32-200 32 60 70 105 24 28 M20
NLBT50-SLA32-250 32 60(50) 70 150 24 28 M20
NLBT50-SLA40-105 40 60(50) 70 200 24 28 M20
NLBT50-SLA42-105 42 60(50) 70 250 24 28 M20
NLBT50-SLA42-150 42 80 80 105 30 32 M20
NLBT50-SLA42-200 42 80 80 150 30 32 M20
NLBT50-SLA50.8-120 50.8 95 90 120 30 32 M20
